PEEK Capillary Tubing
As the professional manufacture, we would like to provide you PEEK Capillary Tubing. And Hengbo® will offer you the best after-sale service and timely delivery.
Send Inquiry
PDF DownLoad
Product Description

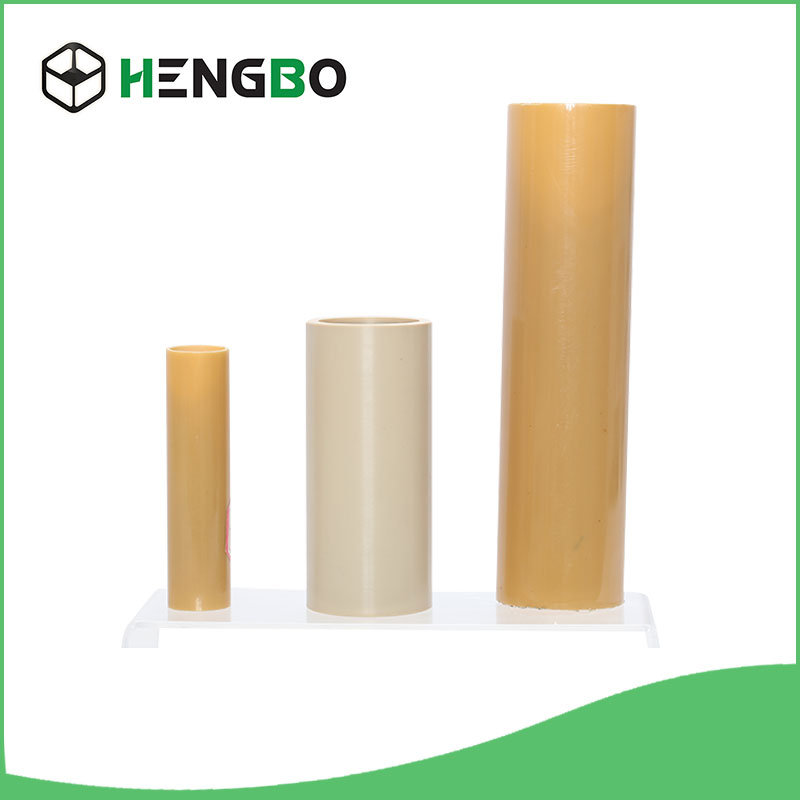

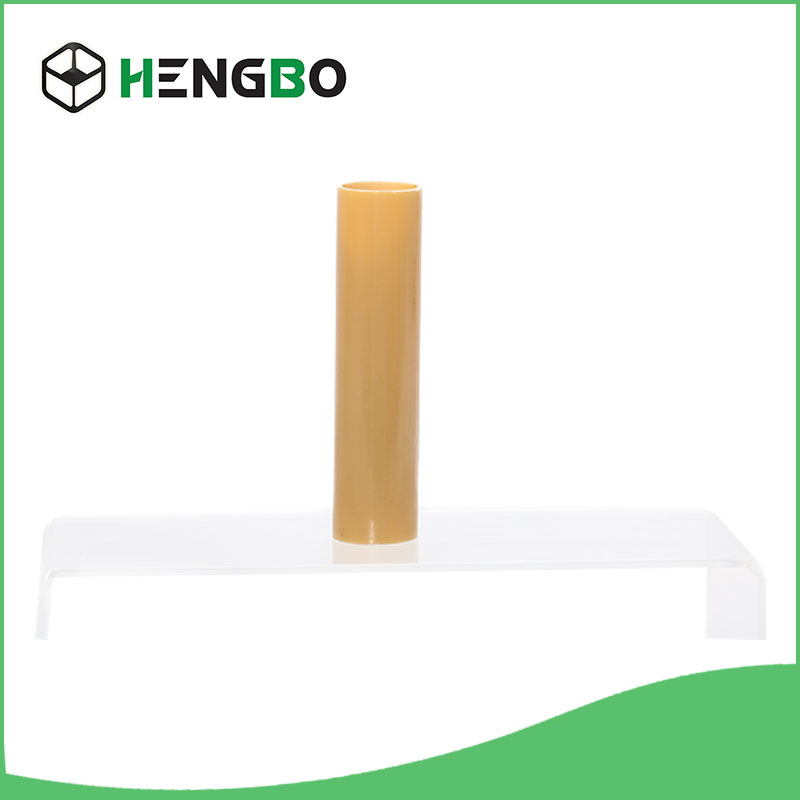

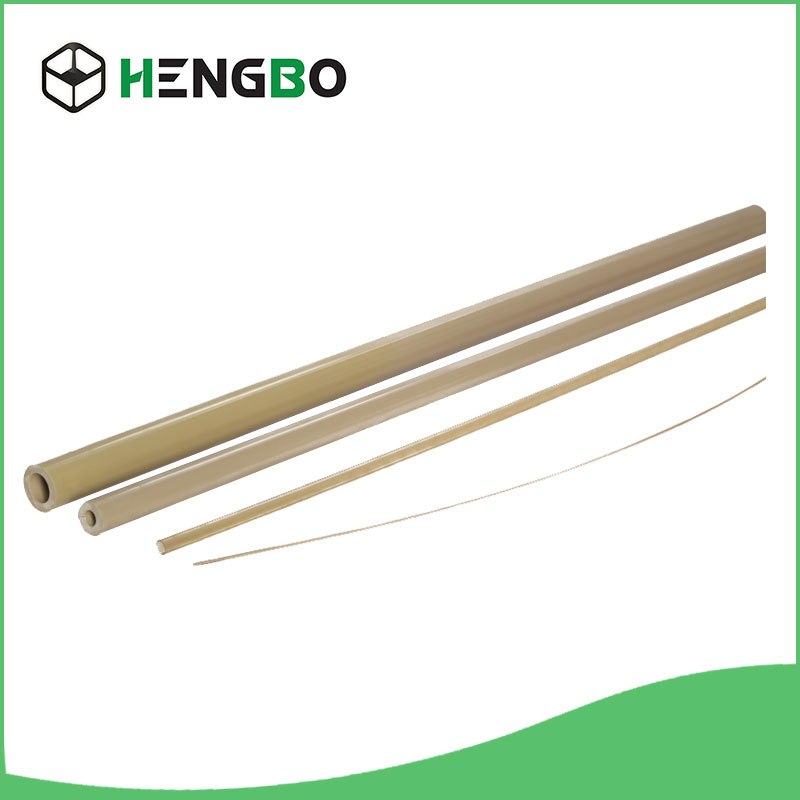

PEEK Capillary Tubing
You are welcomed to come to our factory to buy the latest selling, low price, and high-quality PEEK Capillary Tubing. Hengbo® look forward to cooperating with you.
1.Product Introduction
PEEK Capillary Tubing is well known as having the best balance of chemical resistance, wear resistance and heat resistance among all thermoplastic.We have been manufacturing the PEEK Capillary Tubing since 2019. We are expecting become your long-term partner in China.
2.Product Parameter (Specification)
|
Properties |
Unit |
Test Method |
|
Physical Properties |
||
|
Density |
1.31g/cm3 |
ISO1183 |
|
Water absorption |
0.07% |
ISO62-1 |
|
Shore D Hardness |
85 |
ISO868 |
|
Thermal Properties |
||
|
Glass transition temperature |
152℃ |
ISO 11357 |
|
Melting point |
373℃ |
ISO 11357 |
|
Heat Deflection temperature |
170℃ |
ISO75A-f |
|
Mechanical Properties |
||
|
Tensile Strength |
102 Mpa |
ISO527 |
|
Tensile Modulus |
4.2 GPa |
ISO527 |
|
Tensile Elongation |
45% |
ISO527 |
|
Flexural Strength |
190 MPa |
ISO178 |
|
Flexural Modulus |
4.1 GPa |
ISO178 |
|
Izod Impact Strength（Notched） |
7 kj/m-2 |
ISO179/leA |
|
Izod Impact Strength（un-Notched） |
- |
|
|
Electric Properties |
||
|
Volume Resistivity |
1016Ωcm |
IEC60093 |
|
Dielectric Strength |
21 KV/MM |
IEC6243 |
|
Flow Properties |
||
|
Melt Viscosity @400℃ |
11/ 400℃,5kgs |
ISO 1133 |
|
Other Properties |
||
|
Flammability |
V-0 |
UL94/0.8mm |
|
Friction Coefficient |
0.5 |
2.0ksi-fpm |
3.Product Feature And Application
PEEK Capillary Tubing are used for Industrial, automotive, medical, AEROSPACE and etc
4.Product Details
Diameter of PEEK Capillary Tubing are from 0.25mm to 0.4mm
5.Product Qualification
PEEK Capillary Tubing are approved by REACH and RoHS
6.Deliver,Shipping And Serving
We have 1 line for PEEK Capillary Tubing, we will delivery the cargo as required.
7.FAQ
Q: Can I delivery the goods from other supplier to your factory? Then load together?
A: Yes.
Q: Will you will attend the fair to show your products?
A: Yes.
Q: How far is your factory from the airport?
A: 70km.
Q: Where is your factory located?
A: Danyang City, Jiangsu Province.
Q: Do you provide sample? Free or charge?
A: Yes,charge.
Q: Are you a trading company or a manufacturer?
A: Manufacturer.
Q: How long is your delivery time?
A: Immdiately,we have stock.
Q: How many production lines in your factory?
A: 10 lines.
