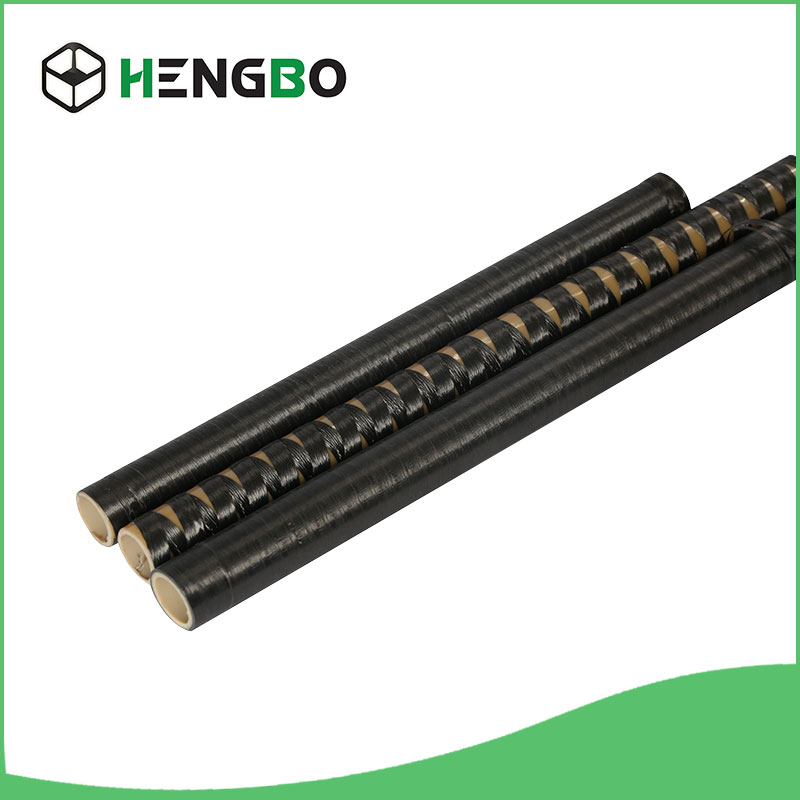

CFRTP UD Tape
Welcome to buy CFRTP UD Tape from Hengbo®. Every request from customers is being replied within 24 hours.
Send Inquiry
PDF DownLoad
Product Description
CFRTP UD Tape is well known as having the best balance of chemical resistance, wear resistance and heat resistance among all thermoplastic.Hengbo® have been manufacturing the CFRTP UD Tape since 2019. We are expecting become your long-term partner in China.
Product Parameter (Specification)
|
Properties |
Unit |
Test Method |
|
Thermal Properties |
||
|
Heat Deflection temperature |
330℃ |
ASTM D648 |
|
Mechanical Properties |
||
|
Tensile Strength |
2300 Mpa |
ASTM D3039 |
|
Tensile Modulus |
125 GPa |
ASTM D3039 |
|
Flexural Strength |
2100 MPa |
ASTM D790 |
|
Flexural Modulus |
135 GPa |
ASTM D790 |
|
Compressive strength |
1100 MPa |
ASTM D7317 |
|
Inter laminar shear strength |
90 MPa |
ASTM D3518 |
|
Carbon fiber connect |
60% |
ASTM D3529 |
Product Feature And Application
CFRTP UD Tape are used for Industrial, automotive, medical, AEROSPACE and etc
Product Details
Thickness of CFRTP UD Tape are from 0.15mm to 40mm and length is by order, width is by order
Product Qualification
CFRTP UD Tape are approved by REACH and RoHS
Deliver,Shipping And Serving
We have 2 lines for Carbon fiber prepreg production, we will delivery the cargo as required.
