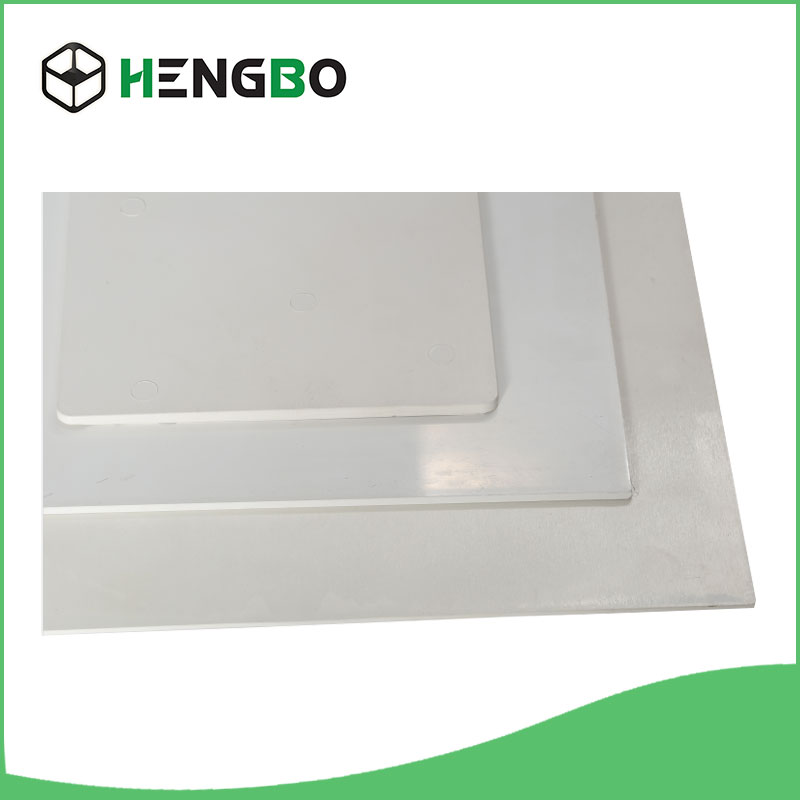

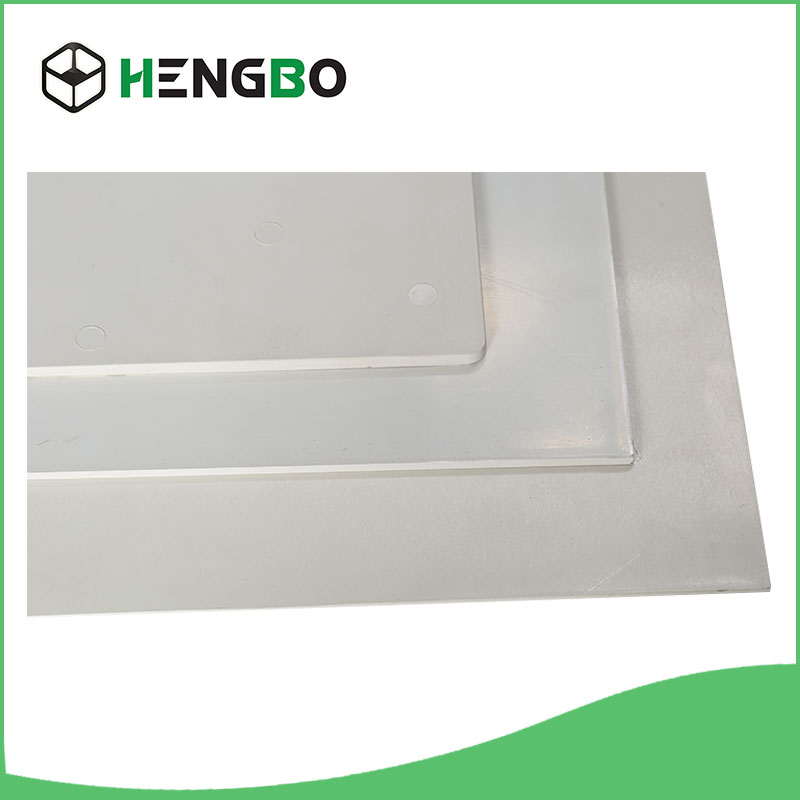

Carbon Fiber Peek Resin for Composite Sheet
As a professional Carbon Fiber Peek Resin for Composite Sheet manufacture, you can rest assured to buy Carbon Fiber Peek Resin for Composite Sheet from our factory and Hengbo® will offer you the best after-sale service and timely delivery.
Send Inquiry
PDF DownLoad
Product Description
As a professional high quality Carbon Fiber Peek Resin for Composite Sheet manufacture, you can rest assured to buy Carbon Fiber Peek Resin for Composite Sheet from our factory and Hengbo® will offer you the best after-sale service and timely delivery.
Carbon Fiber Peek Resin for Composite Sheet is well known as having the best balance of chemical resistance, wear resistance and heat resistance among all thermoplastic.We have been manufacturing the Carbon Fiber Peek Resin for Composite Sheet since 2019. We are expecting become your long-term partner in China.
Carbon Fiber Peek Resin for Composite Sheet Parameter (Specification)
|
Properties |
Unit |
Test Method |
|
Physical Properties |
||
|
Density |
1.4g/cm3 |
ISO1183 |
|
Water absorption |
0.04% |
ISO62-1 |
|
Shore D Hardness |
86 |
ISO868 |
|
Thermal Properties |
||
|
Glass transition temperature |
152℃ |
ISO 11357 |
|
Melting point |
373℃ |
ISO 11357 |
|
Heat Deflection temperature |
200℃ |
ISO75A-f |
|
Mechanical Properties |
||
|
Tensile Strength |
250 Mpa |
ISO527 |
|
Tensile Modulus |
25GPa |
ISO527 |
|
Tensile Elongation |
1.7% |
ISO527 |
|
Flexural Strength |
400 MPa |
ISO178 |
|
Flexural Modulus |
21 GPa |
ISO178 |
|
Izod Impact Strength（Notched） |
5.2 kj/m-2 |
ISO179/leA |
|
Izod Impact Strength（un-Notched） |
45 kj/m-2 |
ISO180/IU |
|
Electric Properties |
||
|
Volume Resistivity |
1015Ωcm |
IEC60093 |
|
Dielectric Strength |
|
IEC6243 |
|
Flow Properties |
||
|
Melt Viscosity @400℃ |
5/ 400℃,5kgs |
ISO 1133 |
|
Other Properties |
||
|
Flammability |
V-0 |
UL94/0.8mm |
|
Friction Coefficient |
0.3 |
2.0ksi-fpm |
Product Feature And Application
Carbon Fiber Peek Resin for Composite Sheet are used for Industrial, automotive, medical, AEROSPACE and etc
Product Details
Diameter of Carbon Fiber Peek Resin for Composite Sheet are from 6mm to 50mm and length is 1200mm, width is 600mm
Product Qualification
Carbon Fiber Peek Resin for Composite Sheet are approved by REACH and RoHS
Deliver,Shipping And Serving
We have 6 lines for PEEK Sheet, we will delivery the cargo as required.
