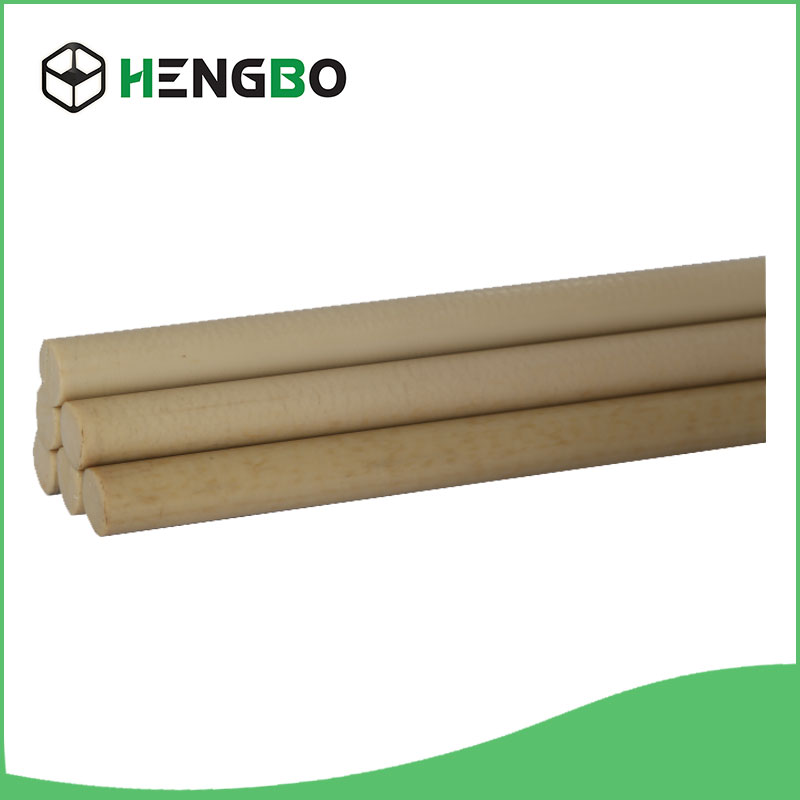

GFR-PEEK Rod
As the professional manufacture, Hengbo® would like to provide you GFR-PEEK Rod. And we will offer you the best after-sale service and timely delivery.
Send Inquiry
PDF DownLoad
Product Description
Jiangsu Hengbo® Composite Materials Co.,Ltd is a professional leader China GFR-PEEK Rod manufacturer with high quality and reasonable price. Welcome to contact us.
GFR-PEEK Rod is well known as having the best balance of chemical resistance, wear resistance and heat resistance among all thermoplastic.We have been manufacturing the GFR-PEEK Rod since 2019. We are expecting become your long-term partner in China.
Product Parameter (Specification)
|
Properties |
Unit |
Test Method |
|
Physical Properties |
||
|
Density |
1.5g/cm3 |
ISO1183 |
|
Water absorption |
0.04% |
ISO62-1 |
|
Shore D Hardness |
86 |
ISO868 |
|
Thermal Properties |
||
|
Glass transition temperature |
152℃ |
ISO 11357 |
|
Melting point |
373℃ |
ISO 11357 |
|
Heat Deflection temperature |
350℃ |
ISO75A-f |
|
Mechanical Properties |
||
|
Tensile Strength |
177 Mpa |
ISO527 |
|
Tensile Modulus |
11 GPa |
ISO527 |
|
Tensile Elongation |
2.7% |
ISO527 |
|
Flexural Strength |
270 MPa |
ISO178 |
|
Flexural Modulus |
10.5 GPa |
ISO178 |
|
Izod Impact Strength（Notched） |
6 kj/m-2 |
ISO179/leA |
|
Izod Impact Strength（un-Notched） |
60 kj/m-2 |
ISO180/IU |
|
Electric Properties |
||
|
Volume Resistivity |
106Ωcm |
IEC60093 |
|
Dielectric Strength |
18 |
IEC6243 |
|
Flow Properties |
||
|
Melt Viscosity @400℃ |
6 / 400℃,5kgs |
ISO 1133 |
|
Other Properties |
||
|
Flammability |
V-1 |
UL94/0.8mm |
|
Friction Coefficient |
0.5 |
2.0ksi-fpm |
Product Feature And Application
GFR-PEEK Rod are used for Industrial, automotive, medical, AEROSPACE and etc
Product Details
Diameter of GFR-PEEK Rod are from 6mm to 150mm and length is 1000mm
Product Qualification
GFR-PEEK Rod are approved by REACH and RoHS
Deliver,Shipping And Serving
We have 6 lines for PEEK Rod, we will delivery the cargo as required.
