You can rest assured to buy customized CFRTP Sheet from us. Hengbo® look forward to cooperating with you, if you want to know more, you can consult us now, we will reply to you in time!

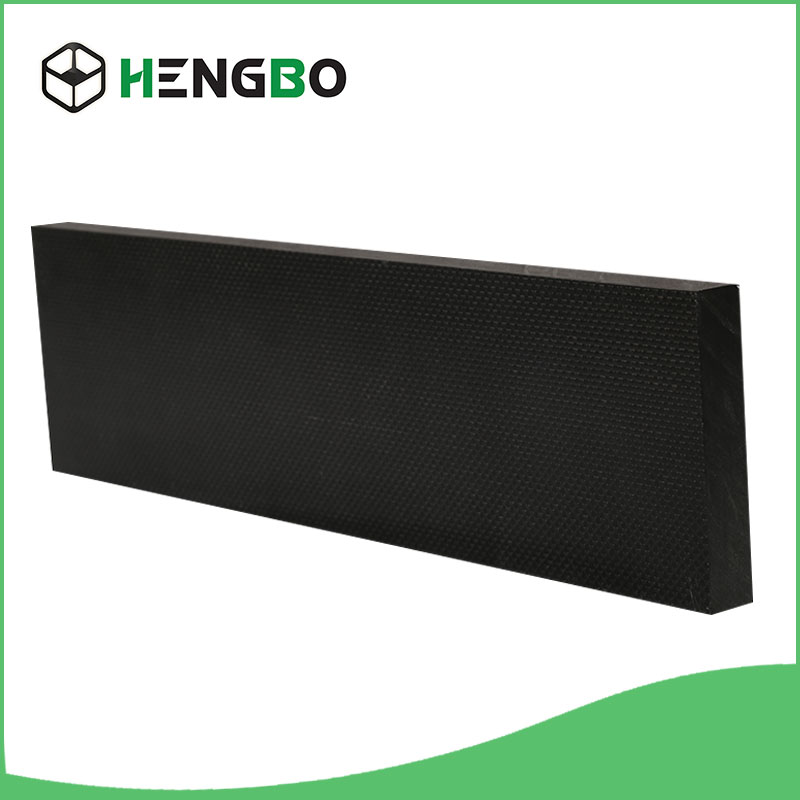

CFRTP Sheet is well known as having the best balance of chemical resistance, wear resistance and heat resistance among all thermoplastic.We have been manufacturing the CFRTP Sheet since 2019. We are expecting become your long-term partner in China.
Product Parameter (Specification)
Properties |
Unit |
Test Method |
Thermal Properties |
||
Heat Deflection temperature |
330℃ |
ISO75A-f |
Mechanical Properties |
||
Tensile Strength |
2300 Mpa |
ISO527 |
Tensile Modulus |
25 GPa |
ISO527 |
Tensile Elongation |
1.7% |
ISO527 |
Flexural Strength |
410 MPa |
ISO178 |
Flexural Modulus |
23 GPa |
ISO178 |
Izod Impact Strength(Notched) |
5.2 kj/m-2 |
ISO179/leA |
Izod Impact Strength(un-Notched) |
45 kj/m-2 |
ISO180/IU |
Electric Properties |
||
Volume Resistivity |
106Ωcm |
IEC60093 |
Dielectric Strength |
|
IEC6243 |
Flow Properties |
||
Melt Viscosity @400℃ |
6 / 400℃,5kgs |
ISO 1133 |
Other Properties |
||
Flammability |
V-0 |
UL94/0.8mm |
Friction Coefficient |
0.4 |
2.0ksi-fpm |
Product Feature And Application
CFRTP Sheet are used for Industrial, automotive, medical, AEROSPACE and etc

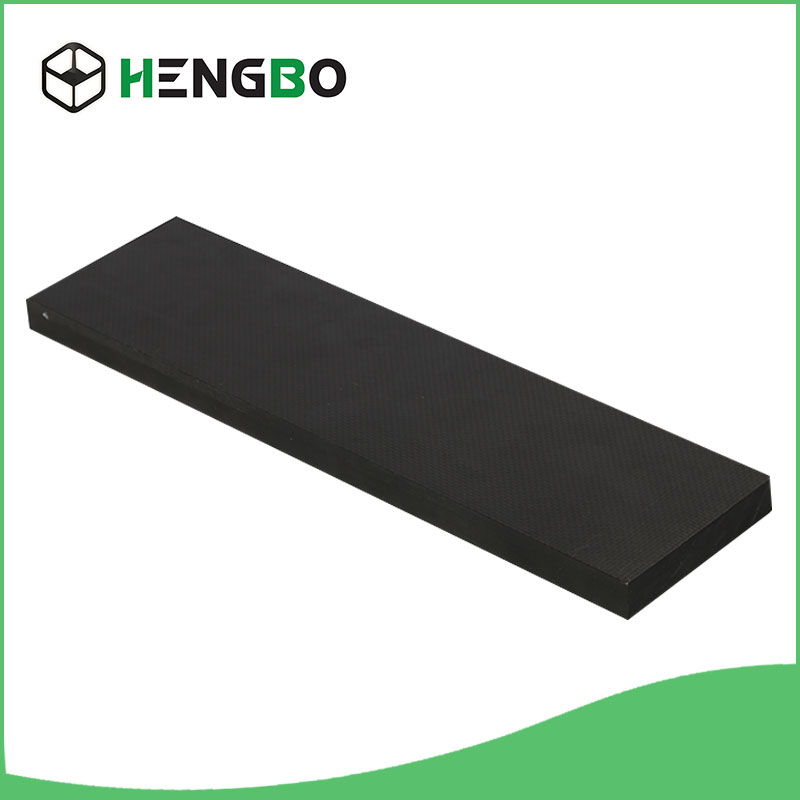

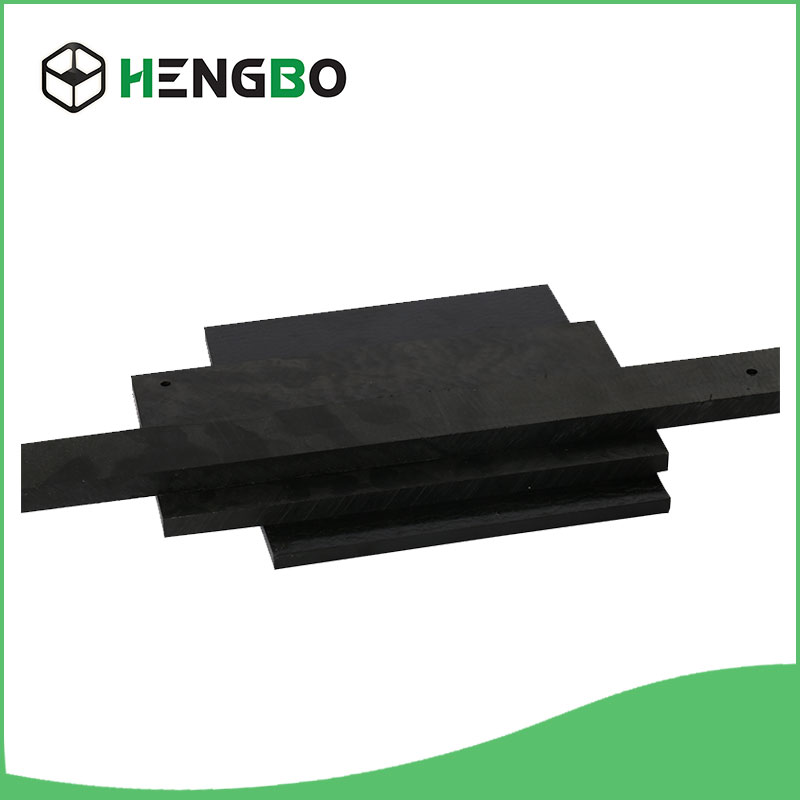

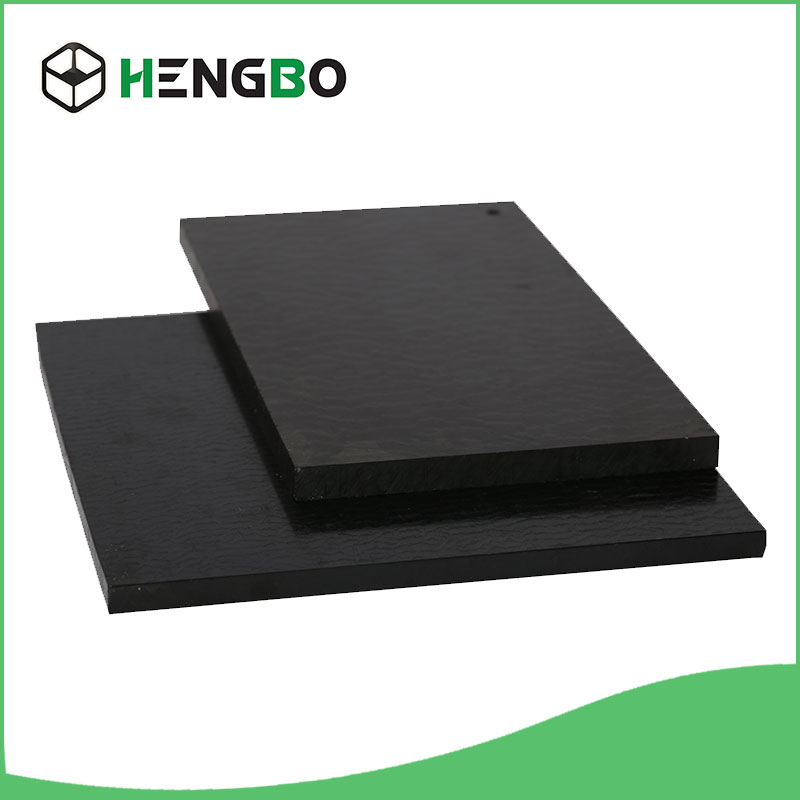

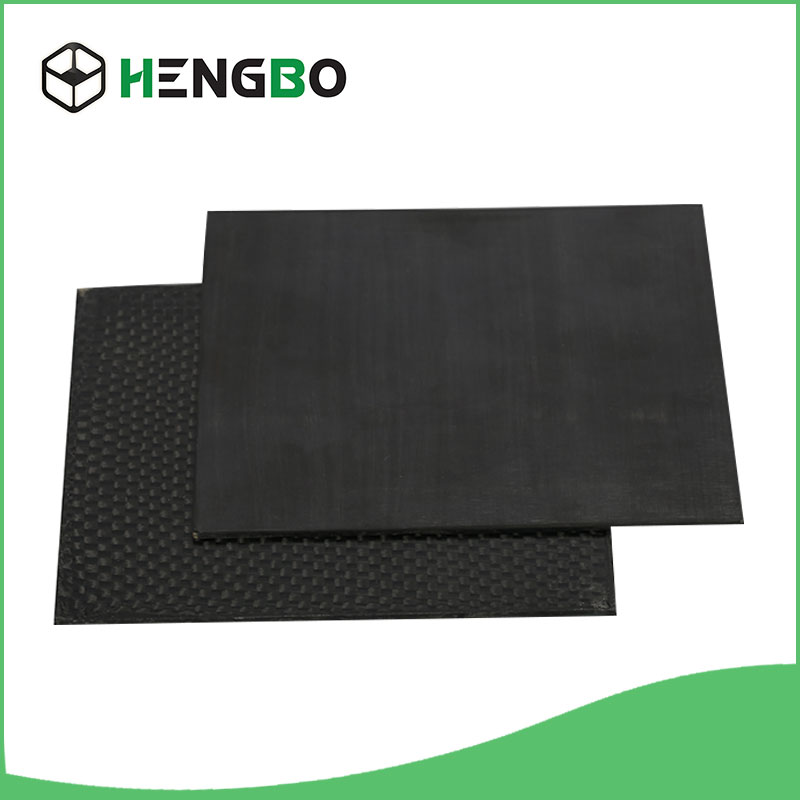

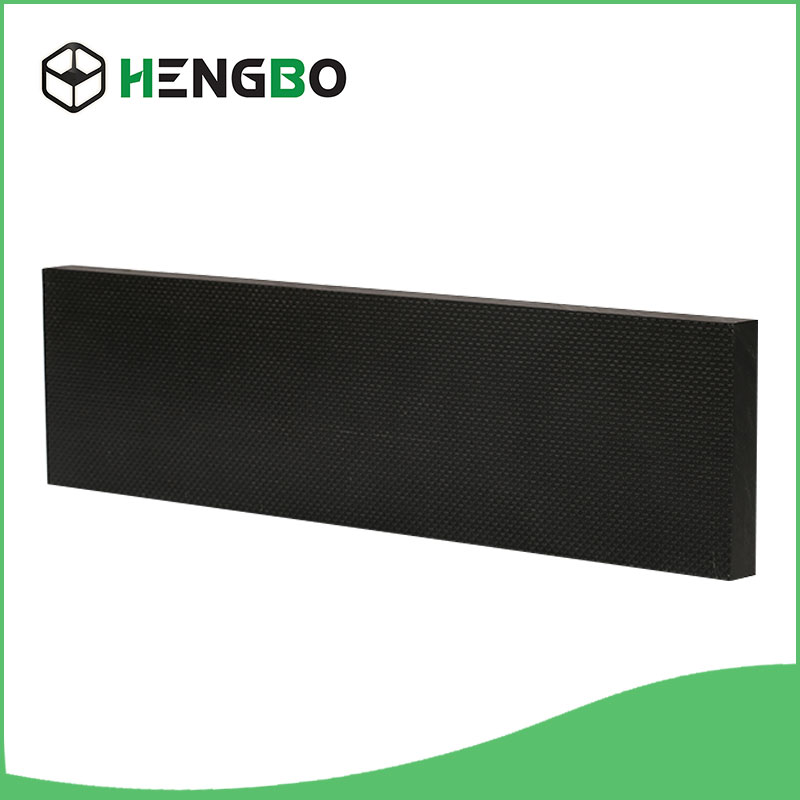

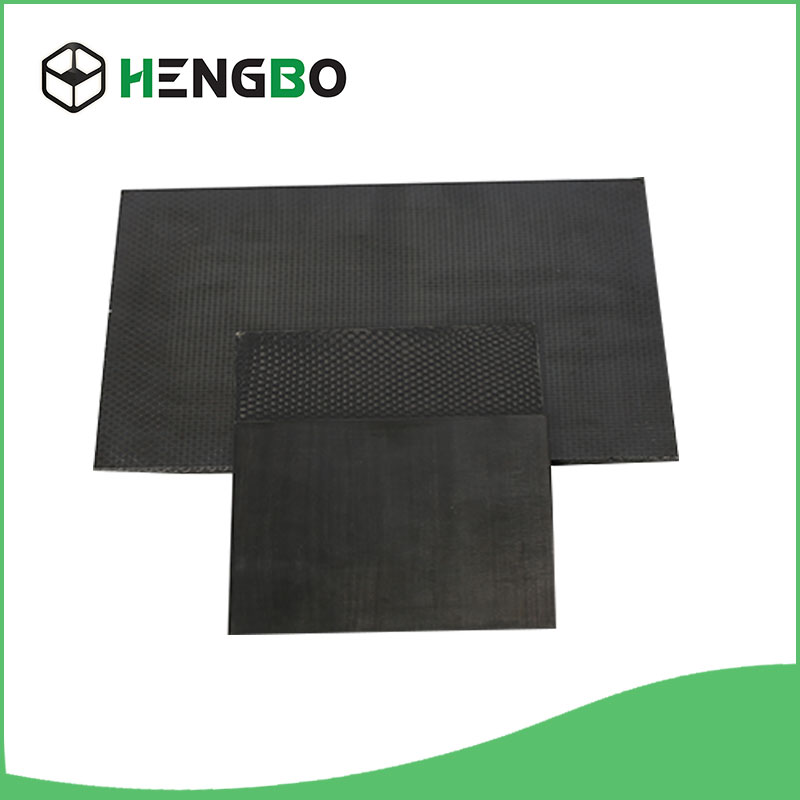

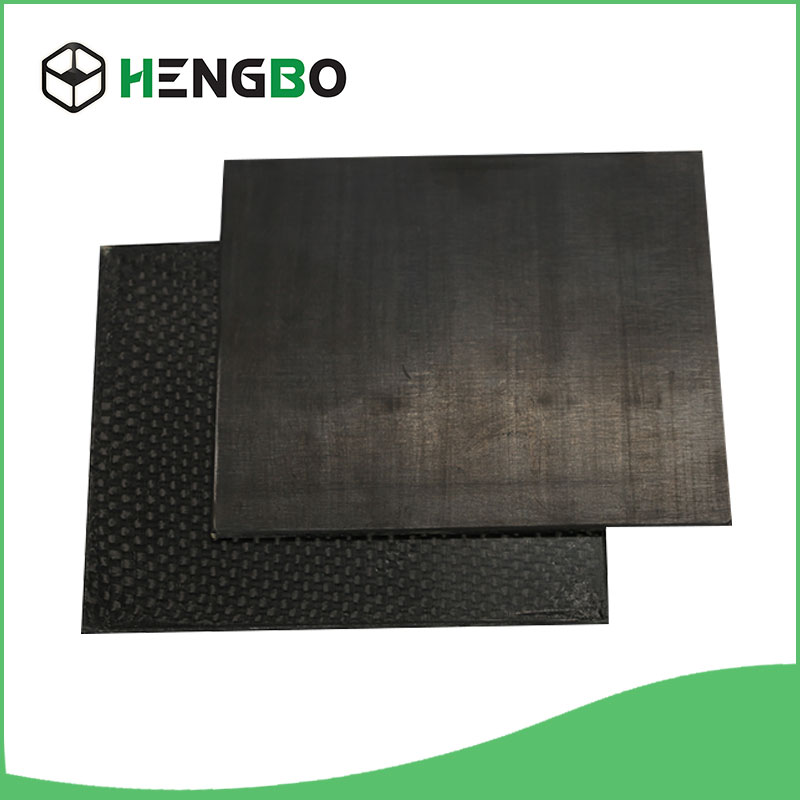

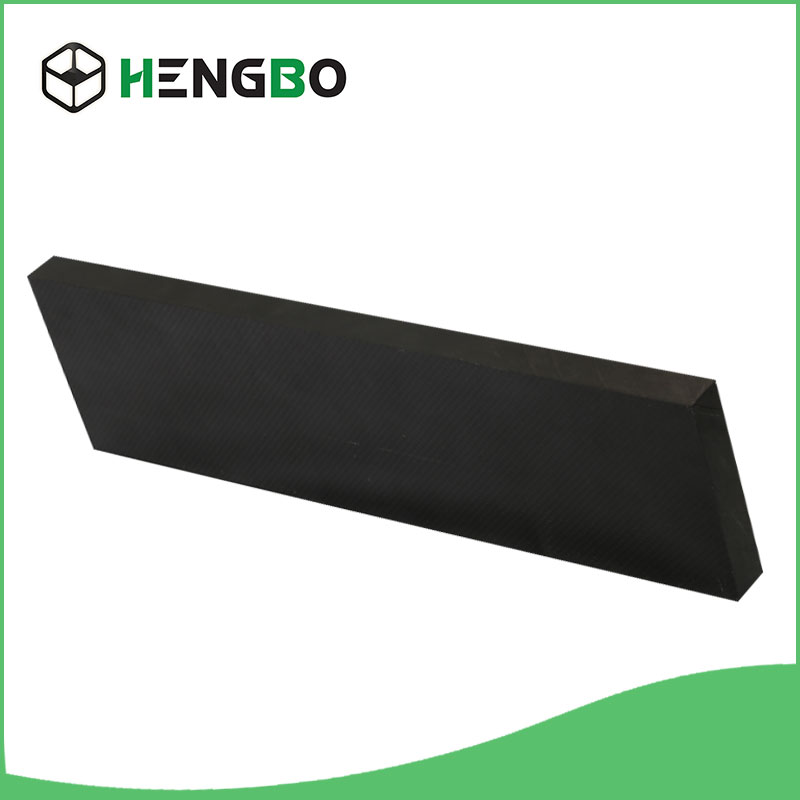

Product Details
Diameter of CFRTP Sheet are from 0.15mm to 50mm and length is 3600mm max, width is 1000mm max
Product Qualification
CFRTP Sheet are approved by REACH and RoHS
Deliver,Shipping And Serving
We have 2 lines for Laminating production, we will delivery the cargo as required.
